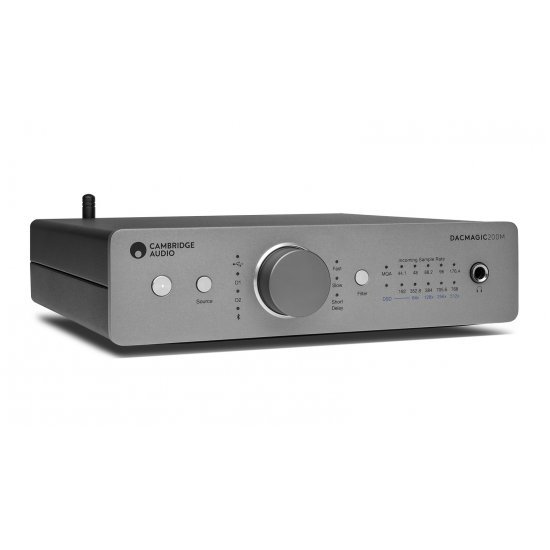

Cambridge Audio DacMagic 200M
Digital to Analogue Converter


Dual ESS ES9028Q2M DACs - easily handles digital audio files up to 32bit/768kHz or DSD512
Supports MQA - be sure you're listening to artist-approved studio-quality audio
Digital optical, digital coaxial and USB inputs - connect CD players, games consoles, laptops or other digital audio sources
Built in Bluetooth aptX - send digital audio files from your smartphone or tablet wirelessly
Finished in Lunar Grey

Studio quality audio.
DacMagic 200M is Cambridge Audio’s first product to support MQA.

MQA is an award-winning British technology that delivers studio-quality sound in a file small enough to stream. TIDAL, for instance, uses MQA technology to deliver master-quality sound in their Hi-Fi membership. Cambridge Audio’s DacMagic 200M can fully decode and playback MQA files, so they sound exactly like the original studio recording.

On the product, look out for the blue MQA indicator. This indicates you are playing an MQA Studio file, which has either been approved in the studio by the artist or producer, or has been verified by the copyright owner. The green indicator is confirmation you are playing and decoding an MQA music file.

The details
DIGITAL TO ANALOGUE CONVERTERS
Dual ESS ES9028Q2M DACs

DIGITAL FILTER
Selectable, Fast – Slow – Short delay

FREQUENCY RESPONSE
10Hz to 50kHz (±1dB)

THD+N @ 1KHZ 0DBFS
<0.0005% (A-Weighted)

SIGNAL TO NOISE RATIO
>115dB (A-Weighted)

CROSSTALK @ 10KHZ
< -110dB

OUTPUT IMPEDANCE
<50 Ohms (unbal), <100 Ohm (bal)

MAX. OUTPUT LEVEL (UNBALANCED)
2.1V rms (fixed or variable – user selectable)

MAX. OUTPUT LEVEL (BALANCED)
4.2V rms (fixed or variable – user selectable)

DIGITAL INPUT WORD WIDTHS SUPPORTED
16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-32bit (USB)

DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED
44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB)

MQA COMPATIBILITY
Full decoding (Core + Renderer)

BLUETOOTH
v4.2, A2DP profile, SBC and AptX codecs

HEADPHONE OUTPUT THD+N
< 0.001% at 1kHz 0dBFS @ 100mW into 32ohm

HEADPHONE OUTPUT S/N
> 115dB (A-Weighted)

MAX OUTPUT POWER
>300mW @ 32ohm, >65mW @ 150ohm

FREQUENCY RESPONSE
10Hz - 50kHz (±1dB)

RECOMMEND HEADPHONE IMPEDANCE
10 Ohm to 600 Ohm

MAX POWER CONSUMPTION
12W
