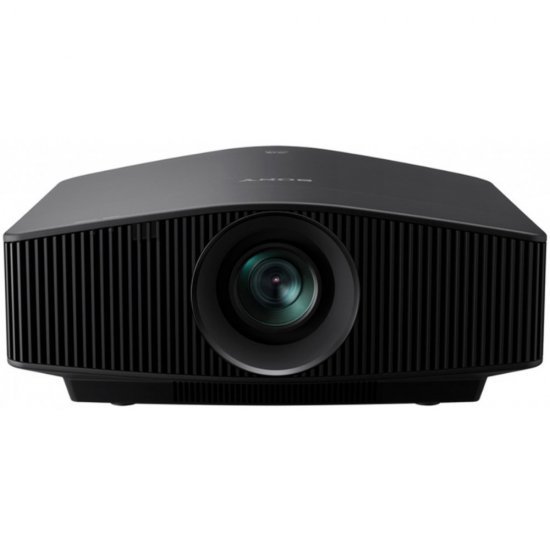

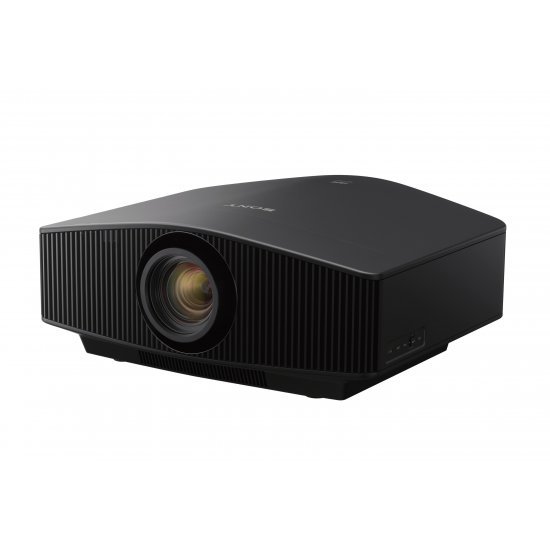

Sony VPL-VW890ES

Specifications

Picture processor: X1 for projector

Display System: 4K SXRD panel, projection system

Display device: Size of effective display area 0.74” x 3

Number of pixels: 26,542,080 (4096 x 2160 x 3) pixels

Projection lens: Focus Powered

Zoom Powered: Lens shift

VPLL-Z7013 (Bundled): Powered V ± 80%, H ± 31%

VPLL-Z7008 (Optional): Powered V ± 50%, H ± 18%

Throw ratio *1

VPLL-Z7013 (Bundled): 1.35 : 1 to 2.90 : 1

VPLL-Z7008 (Optional): 0.85 : 1 to 1.06 : 1

Light source Laser diode

Light output 2,200 lm

Colour light output 2,200 lm

Dynamic contrast ?:1

Displayable scanning frequency

Horizontal 19 kHz to 72 kHz

Vertical 48 Hz to 92 Hz

Display resolution *2

Computer signal input

Maximum display resolution: 1920 x 1080 dots (HDMI Input only)

Video signal input

480/60p, 576/50p, 720/60p,

720/50p, 1080/60 i, 1080/50

i, 1080/60p,1080/50p,

1080/24p, 3840 x 2160/24p,

3840 x 2160/25p, 3840 x

2160/30p, 3840 x 2160/50p,

3840 x 2160/60p, 4096 x

2160/24p, 4096 x 2160/25p,

4096 x 2160/30p, 4096 x

2160/50p, 4096 x 2160/60p

OSD language

18-languages (English, Dutch,

French, Italian, German,

Spanish, Portuguese, Turkish,

Polish, Russian, Swedish,

Norwegian, Japanese,

Simplified Chinese, Traditional

Chinese, Korean, Thai, Arabic)

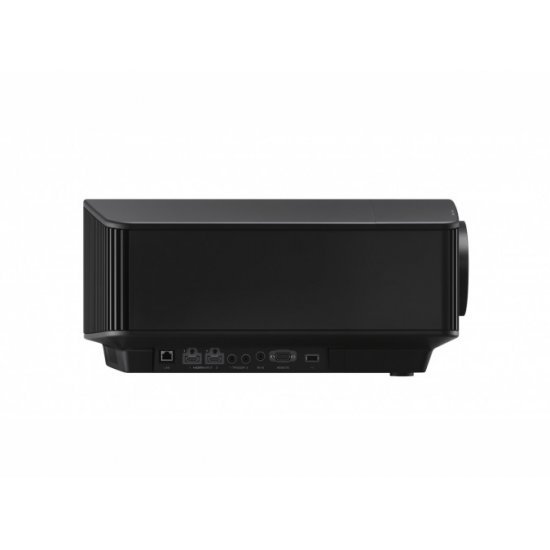

INPUT OUTPUT (Computer / Video / Control)

HDMI1 / HDMI2 *3 Digital (RGB/Y Pb/Cb Pr/Cr)

Trigger1 / Trigger2

Minijack, DC 12 V Max. 100 mA

Remote RS-232C, D-sub 9-pin (male)

LAN RJ45, 10Base-T/100BASE-TX

IR IN Mini Jack

USB DC 5 V, Max. 500 mA

Acoustic noise 24 dB *4

Operating temperature / Operating humidity

5°C to 35°C (41°F to 95°F) /

20% to 80% (no condensation)

Storage temperature / Storage humidity

-10°C to +60°C (14°F to

+140°F) / 20% to 80% (no condensation)

Power requirements

AC 100 V to 240 V, 4.9 A to

2.2 A, 50/60Hz

Power consumption 490 W

Standby 0.4 W (when “Remote Start” is set to “Off”)

Networked Standby 1.0W (LAN) (when "Remote Start" is set to "On")

When a LAN terminal is not connected, it becomes a low power consumption mode (0.5 W).

Standby Mode / Networked Standby Mode Activated After about 10 Minutes

3D capability Yes

3D emitter Built-in RF emitter

TDG-BT500A (Optional)

3D glasses

Please contact your Sony

representative for specific

models available in your

region.

Dimensions (W x H x D) (without protrusions)

560 x 223 x 496 mm

22 1/16 x 8 25/32 x 19 17/32 inches

Mass Approx. 22 kg / 49 lb

Supplied accessories

RM-PJ24 Remote Commander (1)

Size AA (R6) Manganese Batteries (2)

Lens Cap (1)

AC Power Cord (1)

Operating Instructions (CDROM) (1)

Quick Reference Manual (1)

Safety Regulations (1)

Optional accessories

TDG-BT500A (3D glasses)*

VPLL-Z7008 (Short Throw Lens)
