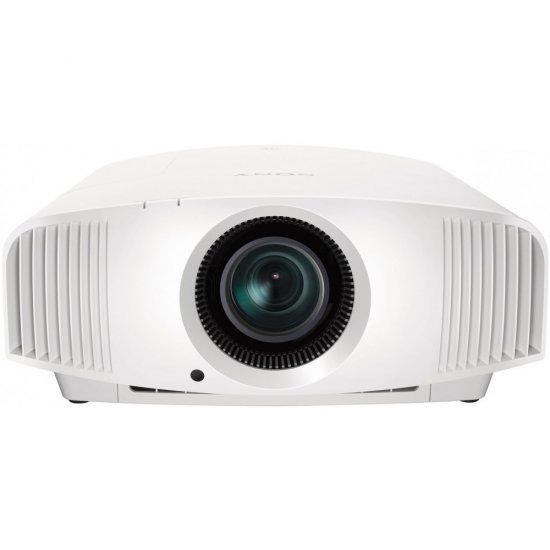

Sony VPL-VW290ES

Picture processor: X1 for projector

Display system: 4K SXRD panel, projection system

Display device Size of effective display area: 0.74” x 3

Number of pixels: 26,542,080 (4096 x 2160 x 3) pixels

Projection lens: Focus Powered

Zoom: Powered (Approx. x 2.06)

Lens shift Powered, Vertical: +85 % -80 %,

Horizontal: +/-31 %

Throw ratio: 1.38 : 1 to 2.83 : 1

Light source High-pressure mercury lamp, 225 W type

Recommended lamp replacement time 6000 H (Lamp mode: Low)

Light output 1500 lm (Lamp mode: High)

Accepted digital signals:

720 x 576/50p, 720 x 480/60p,

1280 x 720/50p, 1280 x 720/60p,

1920 x 1080/50i, 1920 x 1080/60i,

1920 x 1080/24p, 1920 x 1080/50p,

1920 x 1080/60p, 3840 x 2160/24p,

3840 x 2160/25p, 3840 x 2160/30p,

3840 x 2160/50p, 3840 x 2160/60p,

4096 x 2160/24p, 4096 x 2160/25p,

4096 x 2160/30p, 4096 x 2160/50p,

4096 x 2160/60p

Input Output :(Computer / Video / Control)

HDMI x 2 (HDCP2.2)

Trigger x 1 (Mini jack, DC 12 V, Max. 100 mA)

RS-232C x 1 (D-sub 9-pin (male))

LAN x 1 (RJ-45, 10BASE-T/100BASE-TX)

IR IN / OUT IN: x 1 (Mini jack)

USB x 1 (Type A, DC 5 V, Max. 500 mA)

Super Resolution: Yes

Motionflow: Yes

HDR Format: HDR10/HLG

3D: Yes

Input lag reduction: Yes (4K/2K)

Acoustic noise: 26 dB

Power requirements: AC 100-240 V, 50/60 Hz

Power consumption: 390 W

Standby: 0.4 W (when “Remote Start” is set to “Off”)

Networked Standby :1.0 W (LAN) (when “Remote Start” is set to “On”)

Dimensions: (Without Protrusions) W 496 x H 205 x D 464 mm

Mass Approx: 14 kg / 31 lb

Supplied accessories: RM-PJ28 Remote Commander (1), Size AA (R6) Manganese Batteries (2),

AC Power Cord (1),

Lens Cap (1),

Operating Instructions (CD-ROM) (1),

Quick Reference Manual (1),

Safety Regulations (1)

Optional accessories LMP-H220 (Lamp)
