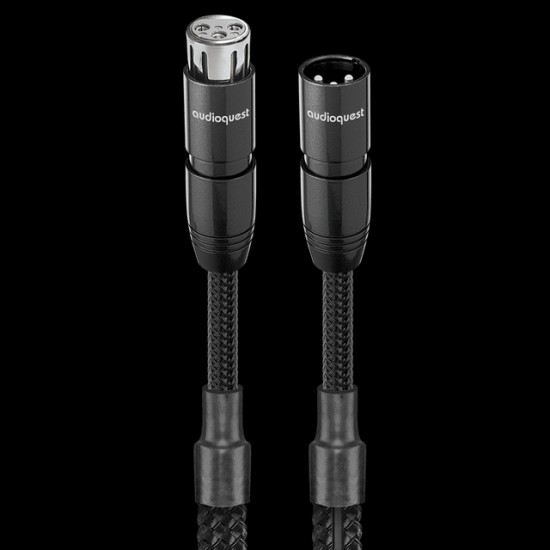

AudioQuest WEL Digital AES/EBU skaitmeninis kabelis

WEL Signature AES/EBU XLR Balanced Cable

WEL Signature AES/EBU features extreme-purity Perfect-Surface Silver (PSS) conductors and a 7-Layer Carbon-Based Noise-Dissipation for ultimate dissipation of radio-frequency noise.

Key Features & Technology Explained

Solid conductors prevent strand-interaction, a major source of dynamic distortion in cables.

AudioQuest's highest-quality metal. Perfect-Surface Silver (PSS) minimizes distortion caused by grain boundaries and maximizes linear RF Noise-Dissipation.

Alternating layers of metal and carbon-loaded synthetics "shield the shield," absorbing and reflecting most RF energy before it reaches the layer attached to ground.

Hard-Cell Foam's high air content minimizes energy absorption for clearer sound.

All internal conductors are Direction-Controlled to reduce RF noise.

Description

Solid Perfect-Surface Silver (PSS) Conductors

Solid conductors prevent electrical and magnetic strand-interaction. PSS Solid-Silver minimizes distortion caused by grain boundaries and maximizes linear RF Noise-Dissipation.

Carbon-Based 7-Layer Noise-Dissipation, 3X EMI Absorption

100% shield coverage is easy. Preventing captured RF Interference from modulating the equipment’s ground reference requires AQ’s Noise-Dissipation System. Metal and Carbon-Loaded synthetics prevent most RFI from reaching the equipment’s ground plane.

72v Dielectric-Bias System (DBS)

Insulation is also a dielectric that can act like a shunt-filter. Biasing minimizes dielectric-noise and linearizes the filter, significantly improving wide-bandwidth dissipation of induced RF noise.

Hard-Cell Foam Insulation

Hard-Cell Foam (HCF) Insulation ensures critical signal-pair geometry. Any solid material adjacent to a conductor is actually part of an imperfect circuit. Wire insulation and circuit board materials all absorb energy. Some of this energy is stored and then released as distortion. Hard-Cell Foam Insulation is similar to the Foamed-PE used in our more affordable Bridges & Falls cables, and is nitrogen-injected to create air pockets. Because nitrogen (like air) does not absorb energy and therefore does not release any energy from or into the conductor, distortion is reduced. In addition, the stiffness of the material allows the cable's conductors to maintain a stable relationship along the cable's full length, producing a stable impedance character and further minimizing distortion.

Specifications for product WEL Signature AES/EBU

Materials & Design

Metal

Solid Perfect-Surface Silver (PSS)

Gauge

21 AWG

Insulation

Hard-Cell Foam

Shield

Foil + Silver-Plated Spiral

Jacket

Black on Black Nylon Braid

Terminations

Direct-Silver Plated

Features & Performance

Noise-Dissipation

Carbon-Based Multi-Layer + 3x EMI Absorption
