NEW design – form and function are optimized for today’s listening and viewing experience. The décor-friendly On-Wall design gives the customers the flexibility for an easy and simple installation where performance and esthetic are the core elements.

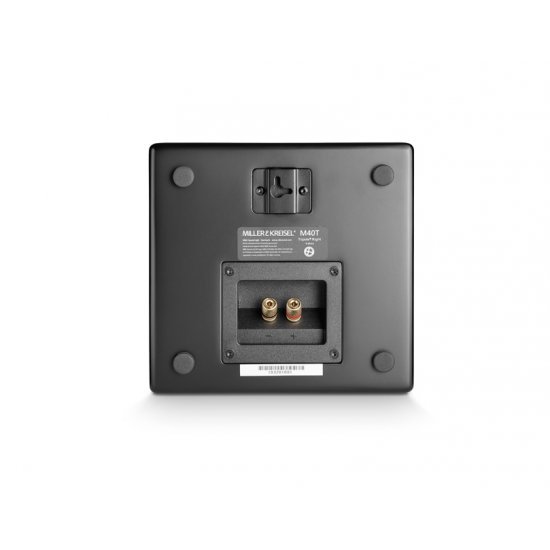

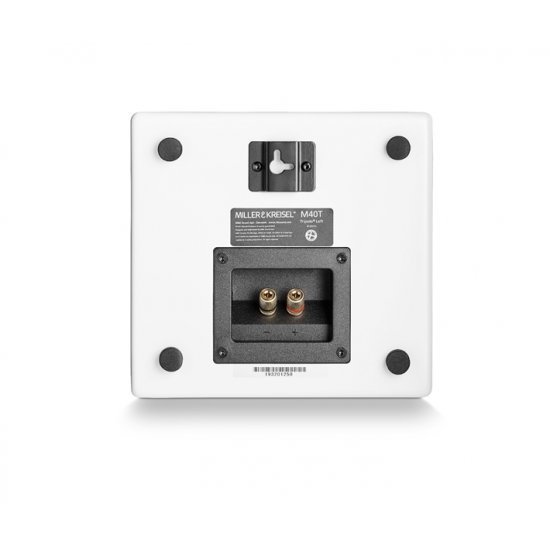

The ultra slim, low-profile enclosure is the benchmark for the NEW M Series. All model is designed specifically for direct On-Wall mounting and is fitted with integral rear panel brackets, along with specially designed damping pads to ensure easy and vibration-free installation. All mounting accessories is included providing a simple and hassle-free installation
All models feature new components as well as a new improved cross-over making each model a true voice match within the M Series.
Nominal system impedance: 4 ohm (Z-min 4.6 ohm)
Frequency Response: 100-20Khz (average response in room +/- 2dB)
Frequency Roll Off: 100Hz (-6dB 100 Hz near field wall mounted)
Crossover Frequency: 2.0 Khz “Phase focused” (4th&2nd order)
Tweeter (shielded): 1” Dome – Coated silk dome / Neodymium magnet
Woofer (shielded): 4” Coated glass fibre
Side drivers (shielded): 2 X 3? (Polymer Coated Textured Paper)
Power Handling: 80 watt Long term IEC-268-5 (cycled input 100-20Khz)
Power Handling: 50 watt (Rated IEC-268-5 (constant input 100-20Khz)
Recommended Amplifier Power: 25-125 watt (Recommended amp power to drive speaker)
Sensitivity: 85 dB (Average SPL 2.83 Volt / 1mtr (on axis 200-10KHz)
System Princip: Sealed enclosure
Connection: Terminal gold plating (Screw for 5 mm cable / Banana)
