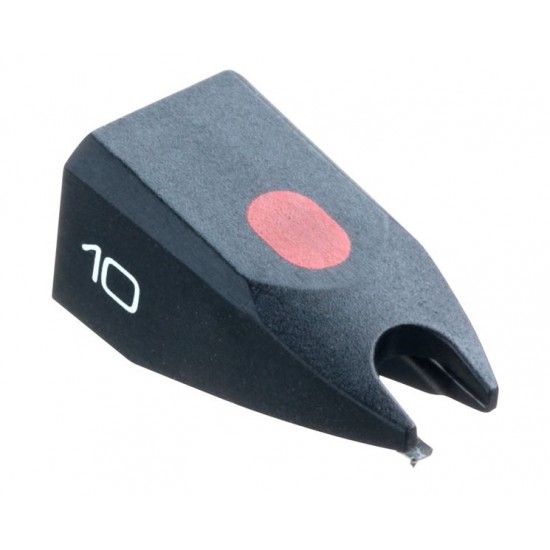

Ortofon OM 10 Stylus pakaitinė adatėlė

Ortofon stylus 10.

Recommended for the following cartridges: Super OM 10, OM 10, OMP(p-mount) 10, OMB(Bulk) 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD, TM 10H, LMB 12, SMB 12, and LMA 12.

Specifications

Frequency response 20 Hz - 20 kHz

3 /- 3 dB

Tracking ability at 315 Hz

60 µm

Compliance, dynamic, lateral

20 µm/mN

Stylus type

Elliptical

Stylus tip radius

r/R 8/18 µm

Tracking force range

1.25-1.75 g (12.5-17.5 mN)

Tracking force, recommended

1.5 g (15 mN)

Tracking angle

20°

Stylus colour

Black
