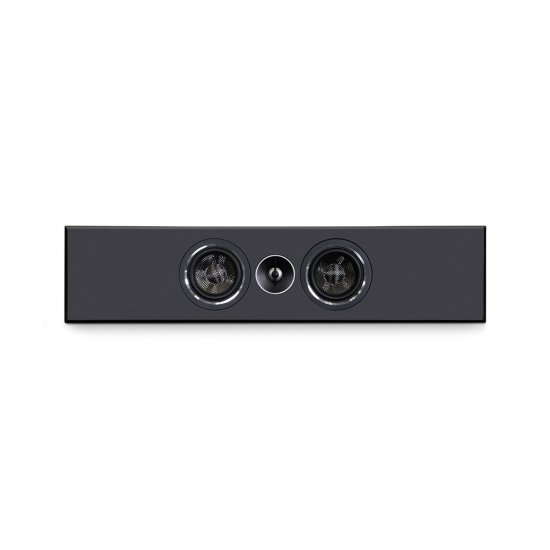

PWM1 On-Wall Speaker
Ultra-slim, single-channel flat-panel speaker The PWM1 offers an outstanding performance for its modest size. It can reproduce the most demanding musical passages or cinematic scenes with a level of detail typically found in larger speakers. Its simple 2-way design, consisting of a 1” titanium tweeter and dual 4” carbon fibre drivers are coupled with a unique ported cabinet to create an extremely efficient speaker requiring little amplification power.
PWM1 is an on-wall speaker that can be mounted vertically or horizontally (mount included)
Can be used for left, center, or right channel or as a surround speaker
Available in Satin White or Satin Black
Designed and voiced by the growing PSB design team mentored by PSB founder and speaker industry icon, Paul Barton
Frequency response
On Axis +/- 3db 70Hz-23kHz
Impedance
Normal 8 Ohms
Recommended Amplifier Power
Tweeter (Nominal) 1" (25mm)
Titanium Dome with Ferrofluid
Woofer (Nominal) 2x 4" (100mm)
Carbon Fibre Cone Rubber Surround
Cast Basket
Design Type Bass Reflex
Size Net H (711mm), Net W (165mm), Net D (85mm)
- Prieinamumas: Teirautis
- Modelis: PSB PWM1
- Mato vnt.: vnt
