REL HT/1205MKII bosinė kolonėlė

HT/1205 MKII

HT/1205 MKII establishes a new performance standard for affordable home theatre subwoofers. Avoiding electronic gimmickry in favor of properly balanced priorities; cabinets that are right-sized, solidly braced and beautifully finished. A sparkling new amp design that effortlessly delivers 500W into an all-new CarbonGlas™ 12” (300mm) driver. The sexy new black lacquer top plate has a subtle REL logo floating on top, while the expensively wrought black line-grained composite for the cabinet looks the business.

Specifications

Closed box, front-firing driver

ACTIVE DRIVER SIZE & MATERIAL

12 in., 300mm long-throw, CarbonGlas™ cone structure, inverted carbon fibre dust cap, steel chassis

PASSIVE RADIATOR SIZE & MATERIAL

NA

LOW FREQUENCY EXTENSION

-6dB at 22 Hz

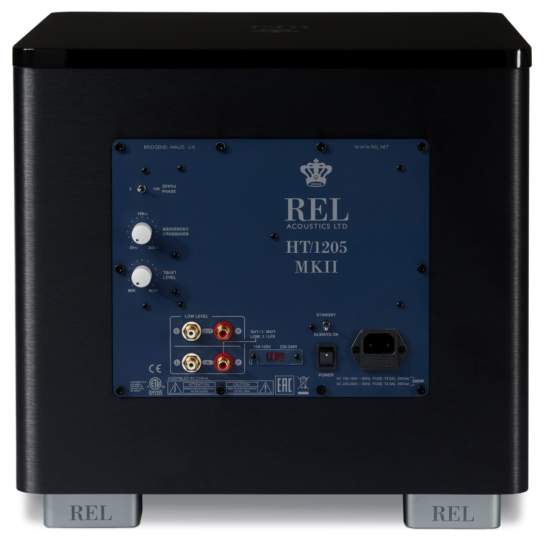

INPUT CONNECTORS

Dual purpose Low Level stereo RCA or LFE RCA

OUTPUT CONNECTORS

Daisy Chain Low Level stereo RCA or LFE RCA

POWER OUTPUT

500 watts (RMS)

AMPLIFIER TYPE

NextGen5 Class D

WIRELESS CAPABILITY

HT Air Wireless (Optional), Zero Compression Single Large Scale Integrated Chip

DUAL PARAMETRIC FILTER

N/A

Protection System

FULLY ELECTRONIC SET SAFE

Yes

D.C. FAULT

Yes

OUTPUT SHORT

Yes

MAINS INPUT VOLTAGE

220-240 volts, 110-120 volts for certain markets

FUSES

4 Amp semi delay 230b, 4 Amp semi delay 115b operation

Dimensions

W X H X D

413mm x 387mm x 438mm

NET WEIGHT

19.6kg

FINISH

Horizontally Oriented Lined Grained Black Composite Cabinet, 15mm Top Plate, finished in 5 coats of Hand rubbed High Gloss Black Lacquer

Supplied Accessories

MAINS LEAD

Yes

NEUTRIK SPEAKON

NA

INTERCONNECT

No

USERS MANUAL

Yes

Wired For Sound: HT-Air

Wired for sound used to entail long runs of cable strewn across the floor. With our optional HT-Air™, great sound has become “un-wired.” Wire has been replaced by a tiny transmitter and matching receiver that sends an incredibly fast 5.8Ghz wireless signal up to 60 feet with no digital compression. This affordable circuit includes the same LSIC chip that powers our state-of-the-art AirShip II, minus the expensive analogue-to-digital and digital-to-analogue (DAC) convertors. The HT-Air is perfect for the .1/LFE signals using RCA connectors that are HT/1205 MKII’s primary mission.
