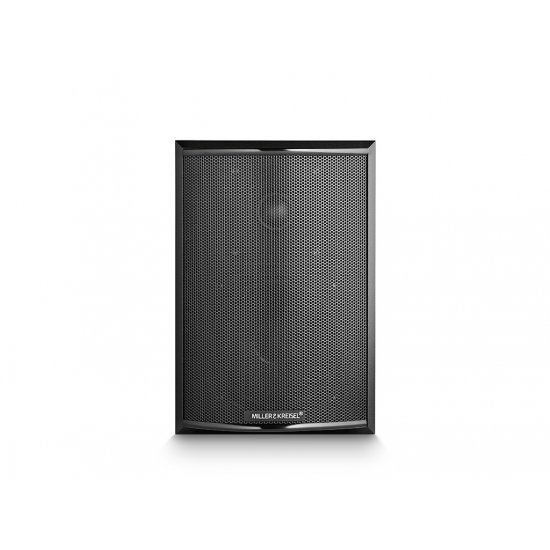

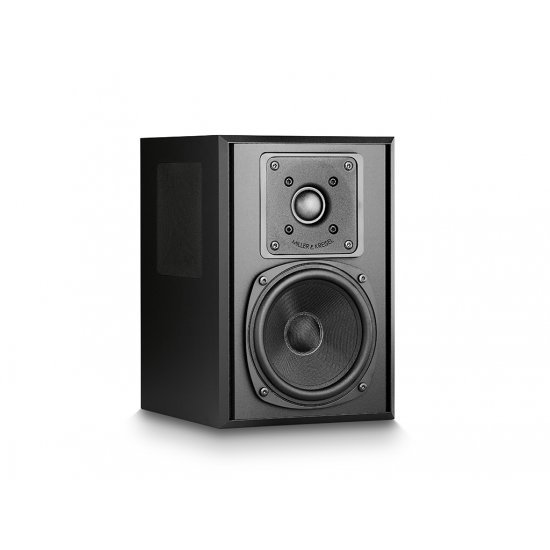

SUR55T Tripole® Speaker
The SUR55T is the most compact THX Tripole® solution we offer and is timbre matched to any of the 750 Series speakers.
Ultra-compact speaker featuring our new 750 Series components, together with 2 dedicated side drivers operating in a dipole fashion,
providing the most optimal cinematic surround sound available.
Featuring two 3” mid-tweeters on each side of the speaker oriented in dipole fashion, combined with the front-mounted 1” soft-dome tweeter and a 5.25” midwoofer direct radiating, the SUR55T provides even distribution of sound throughout the listening area with pinpoint accuracy and an enveloping soundfield.
The NEW Miller & Kreisel 750 Series takes the THX Select category to new a level and we are proud to introduce a true acoustic upgrade, in the form of our own customized Danish designed and produced tweeters.
We’ve taken the innovative high-performance technologies from the S150 Series and integrated them into the NEW Miller & Kreisel 750 Series.
New Danish-designed high-performance tweeters
28 mm vented voice coils provide high power handling and extended linearity.
28 mm high-precision coated soft dome.
Specially constructed resonance-damped tweeter magnet-system for precise transient control.
Integrated waveguide combined with short horn load for wide dispersion and smooth frequency response.
High frequency prism system – Curved metal grill and angle tweeter for optimized off-axis response as well as on-axis response.
New 5.25-inch woofers
Aluminum distortion-killer rings for reduced distortion at high SPL levels.
New extra-stiff coated fiberglass cone with special M&K profile geometry.
Vented pole piece in magnet system for low compression performance.
Vented voice coil for low compression.
New optimized crossovers
Phase-focused crossover designs optimized for low crossover points and transient control.
New proprietary M&K Sound interconnect cables.
Sound
Nominal system impedance 4 ohm (Z-min 4.2 ohm)
Frequency Response: 80-20Khz (average response in room +/- 3dB)
Frequency roll off: 80 Hz (-6dB at 80 Hz near field)
Crossover Frequency: 1.6 Khz (“Phase focused” 4th/2nd oder)
Tweeter: 1,1? Silk Coated Dome
Woofer: 5.25? Coated Glass Fibre
Power handling: 100 watt (Long term IEC-268-5 (cycled input 87-20Khz)
Power handling: 55 watt (Rated IEC-268-5 (constant input 87-20Khz)
Recommended Amplifier Power: 25-200 watt (recommended amp power to drive speaker)
Sensitivity: 85 dB (avarage SPL 2.83V/ 1mtr on axis 200-10Khz)
System princip: Sealed enclosure

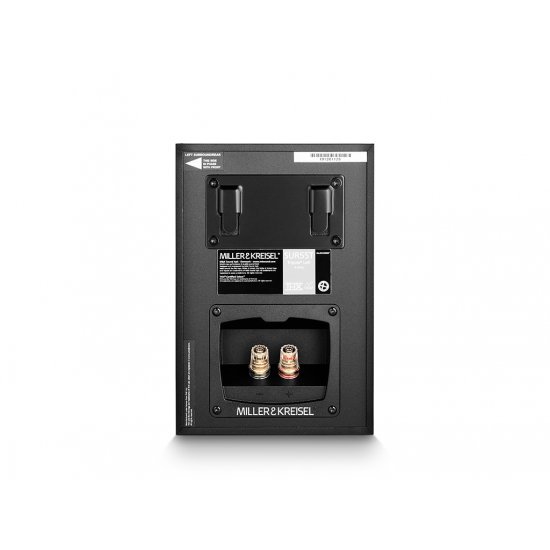

Connection: Terminal gold plating (screw for 5 mm cable / Banana)

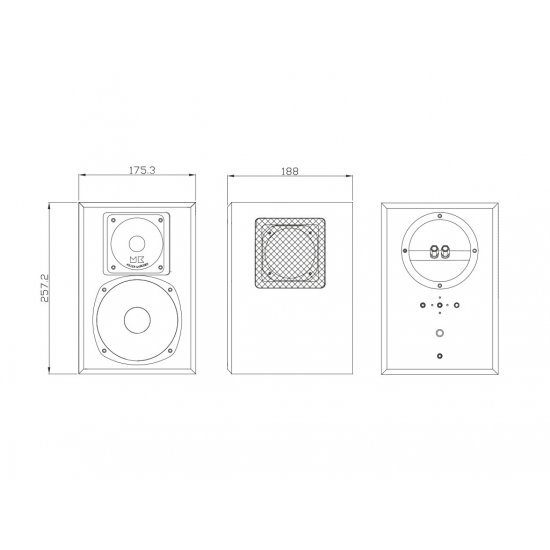

Dimensions
Dimensions HxWxD: 10.2 x 7 x 8.7” / 25.9 x 17.8 x 22.1 cm
Weight: 10.25 lb / 4.7 kg
Colors
Finish: Black Vinyl
